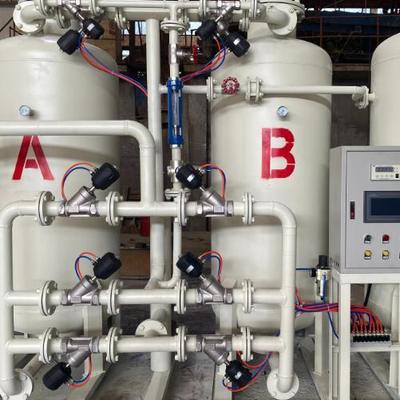

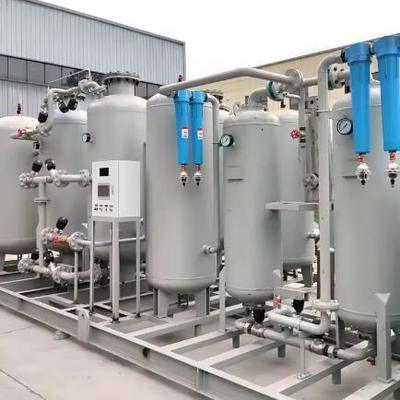

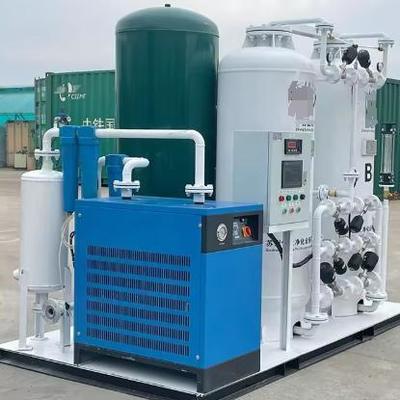

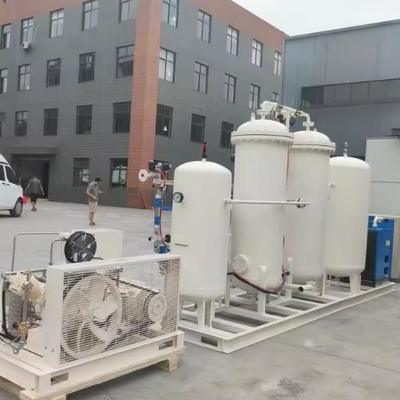

30 Nm³/h Hospital-Specific PSA Oxygen Generator
Medical Oxygen Generation Plant for Hospitals
The PSA Oxygen Generator (Pressure Swing Adsorption Oxygen Generator) is a hospital-specific medical oxygen supply device. Utilizing pressure swing adsorption technology, it produces medical-grade oxygen (93% purity) at 30Nm³/h, featuring stable purity, reliable operation, and intelligent control. As a core component of PSA medical oxygen plants, it fully complies with the national standard for "Medical Oxygen" (GB 8982-2014).
This system provides continuous, stable medical oxygen for hospital wards, operating rooms, and emergency rooms, replacing traditional bottled oxygen. It addresses the challenges of high oxygen supply costs and frequent cylinder replacements, serving as essential equipment for modern hospitals.
Product Specifications
| Gas production (m³/h) |
Oxygen concentration (%) |
Oxygen pressure (Mpa) |
Power (220V/kw) |
Host weight (kg) |
Dimensions (mm) |
Air loss factor |
Bottles per day (40L/120-150kg) |
| 3 | 93±3 | 0.4±0.1 | 0.2 | 600 | 1500×900×1500 | 13.5 | 12-15 |
| 5 | 93±3 | 0.4±0.1 | 0.2 | 900 | 1600×900×1500 | 13.5 | 20-24 |
| 10 | 93±3 | 0.4±0.1 | 0.2 | 1200 | 1600×900×1900 | 13.5 | 40-48 |
| 20 | 93±3 | 0.4±0.1 | 0.2 | 1500 | 1900×1000×2180 | 13.5 | 80-96 |
| 30 | 93±3 | 0.4±0.1 | 0.2 | 2000 | 2000×1100×2180 | 13.5 | 120-154 |
| 40 | 93±3 | 0.4±0.1 | 0.2 | 2500 | 2600×1200×2300 | 13.5 | 160-192 |
| 50 | 93±3 | 0.4±0.1 | 0.5 | 2800 | 1800×1500×2400+800 | 13.5 | 200-240 |
| 60 | 93±3 | 0.4±0.1 | 0.5 | 3200 | 1800×1500×2600+800 | 13.5 | 240-184 |
| 70 | 93±3 | 0.4±0.1 | 0.5 | 3500 | 1800×1600×2800+800 | 13.5 | 280-236 |
| 80 | 93±3 | 0.4±0.1 | 0.5 | 4000 | 1800×1600×2900+1000 | 13.5 | 320-394 |
| 90 | 93±3 | 0.4±0.1 | 0.5 | 4800 | 2000×1600×2800+1000 | 13.5 | 360-432 |
| 100 | 93±3 | 0.4±0.1 | 0.5 | 5800 | 2200×1600×2900+1000 | 13.5 | 400-480 |
| 120 | 93±3 | 0.4±0.1 | 0.5 | 6500 | 2400×1600×3100+1000 | 13.5 | 480-576 |
Advantages Over Bottled Oxygen Systems
Traditional hospital oxygen supply relies on bottled oxygen, which presents three major challenges:
- High operational costs - Procurement, transportation, and storage account for 5-10% of hospital operational expenses
- Unstable supply - Regular replacements required with potential logistics interruptions
- Safety risks - Oxygen cylinder storage poses explosion hazards and transportation accidents
The 30Nm³/h PSA Oxygen Generator meets the oxygen demand of 100-200 bed hospitals. Its 93% medical-grade purity complies with standards while providing 24/7 uninterrupted supply, solving bottled oxygen challenges.
As core equipment of medical oxygen generation plants, operating costs are only 1/3 to 1/2 of bottled oxygen. A 30Nm³/h unit has annual electricity costs of approximately 50,000 RMB, compared to 150,000-200,000 RMB for equivalent bottled oxygen, significantly reducing PSA oxygen plant costs.
Key Selection Criteria for Hospitals
Hospitals should evaluate four critical factors when selecting PSA Oxygen Generators:
- Compliance - Medical device registration certificate and GMP certification with complete documentation
- Stability - ≥8,000 hours/year continuous operation with ≤0.5% failure rate
- Adaptability - Proper flow rate calculation (0.1-0.3Nm³/h per bed) and system compatibility
- Service - 24/7 technical support, quarterly maintenance, and rapid spare parts availability
The PSA Oxygen Generator has become the preferred hospital oxygen solution. The 30Nm³/h configuration serves small-to-medium hospitals perfectly, providing continuous, safe medical oxygen through PSA medical oxygen generator technology.
