Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage
Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

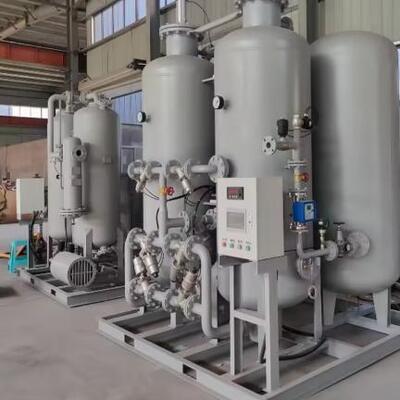

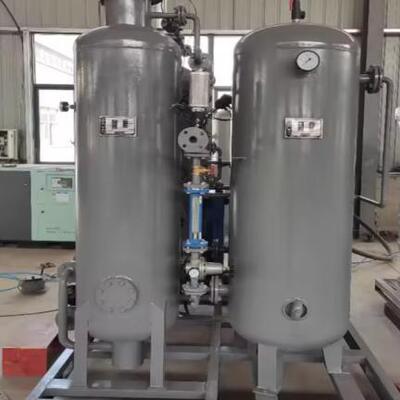

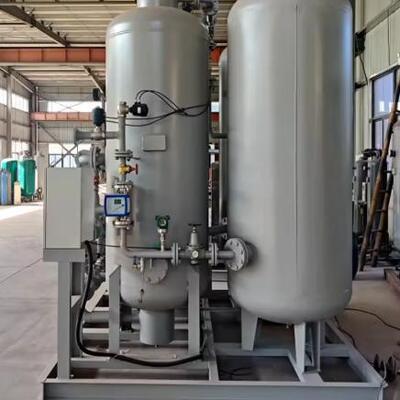

Gambar besar :  Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

Detail produk:
Tempat asal: Cina
Nama merek: GNEE
Sertifikasi: SGS
Nomor model: Psa
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: ≥1set
Kemasan rincian: Kotak Kayu / Kemasan kulit luar / Kemasan silinder / Kemasan kantung udara / kemasan telanjang / Tra
Syarat-syarat pembayaran: T/T,Western Union,MoneyGram,D/P,D/A,L/C
Menyediakan kemampuan: 25 setiap bulan
Kontak

Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

Deskripsi
Operasi tekanan: 0.1-0.5 MPa Kondisi: baru
Kemurnian tinggi: 99,5% Berat: 3200 kg
Penganalisa oksigen: Termasuk Melewati: CE,ISO
Jenis Generator Nitrogen: Skala Kecil Catu Daya: 220V/50Hz
Gloabal Setelah Layanan: Memasok Output nitrogen: 600-2500Nm3/jam
Tekanan outlet: 0.6 ∙1.0 Mpa Penggunaan: Menghasilkan nitrogen
Menyoroti:

99.5% High Purity PSA Nitrogen Generator

,

600-2500Nm3/h Output N2 Production Unit

,

Multi-Functional Nitrogen Gas Generator

Multi-Functional PSA Nitrogen Generator
A versatile industrial gas system built on pressure swing adsorption nitrogen generation technology, utilizing carbon molecular sieve (CMS) to separate nitrogen from atmospheric air with high selectivity. This multi-functional solution seamlessly adapts to two critical applications—laser cutting and food storage—by delivering adjustable purity and flow rates tailored to each scenario. The onsite nitrogen generation equipment eliminates logistical constraints of cylinder or liquid nitrogen supply, providing continuous, on-demand nitrogen for both industrial processing and food preservation.
Core Technical Specifications
Capacity (Nm³/h) Purity (%) Construction Dimensions (mm) Inlet & Outlet Weight (Kg)
595Four towers570*450*1300G1/4; G1/4253
599Four towers580*460*1450G1/4; G1/4295
599.5Four towers1000*900*1200DN20; G1/2"370
599.9Four towers1000*900*1500DN20; G1/2"431
599.99Four towers1200*1100*1350DN20; G1/2"535
599.999Four towers1300*1200*1700DN25; G1/2"698
5Two towers1100*600*1600DN25; G1/2"510
1095Four towers1000*900*1400DN20; G1/2"414
1099Four towers1100*1050*1400DN20; G1/2"485
1099.5Four towers1100*1050*1650DN20; G1/2"510
1099.9Four towers1200*1150*1850DN20; G1/2"624
10Two towers1100*600*1600DN20; G1/2"451
1099.99Four towers1400*1300*1600DN25; G1/2"788
1099.999Four towers1500*1400*1850DN25; G1/2"1098
Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage 0 Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage 1 Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage 2
PSA Technology: Advanced Nitrogen Generation
PSA technology leverages carbon molecular sieve's selective adsorption to produce high-purity nitrogen from air. Compressed air enters adsorption towers where CMS adsorbs oxygen, moisture, and impurities under pressure. Nitrogen is collected as product gas while CMS is regenerated through pressure release, enabling continuous cyclic operation. Compared to VPSA systems, PSA offers faster startup times (5-10 minutes), higher operating pressure, and more compact design—ideal for dual-mode functionality.
Key Selection Criteria
  • Purity Flexibility: Adjustable purity between 99.9% and 99.999% to cover both laser cutting and food storage applications
  • Flow Rate Matching: Select capacity range (20-100Nm³/h) to accommodate peak demand of both operations
  • Material Compliance: Food-grade stainless steel components with FDA certification for food storage applications
  • Energy Efficiency: Variable frequency drive and intelligent cycle control to reduce consumption during low-demand periods
  • Manufacturer Reliability: Choose experienced suppliers with comprehensive after-sales support
  • Cost-Effectiveness: Evaluate total cost of ownership including initial purchase, energy, and maintenance
Future Technology Trends
  • Smart Integration: IoT-enabled PLC systems for remote monitoring and predictive maintenance
  • Higher Purity Precision: Advanced CMS technology for more precise purity adjustment across applications
  • Compact Modular Design: Scalable components for easy expansion as production requirements grow
  • Eco-Friendly Materials: Recyclable CMS and biodegradable seals to enhance sustainability
  • Dual-Certification Compliance: Pre-certified for both industrial (CE, ISO 9001) and food safety (FDA, HACCP) standards
Contact Us:
In addition to PSA Nitrogen Generators, we also produce VPSA Oxygen Generators, PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in PSA nitrogen systems or other products, please contact us at info@gneeheatex.com.
