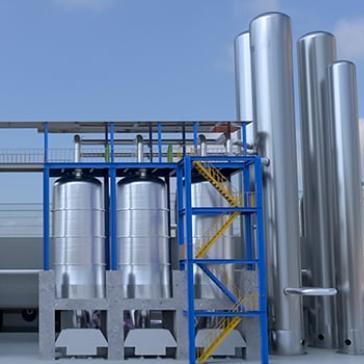

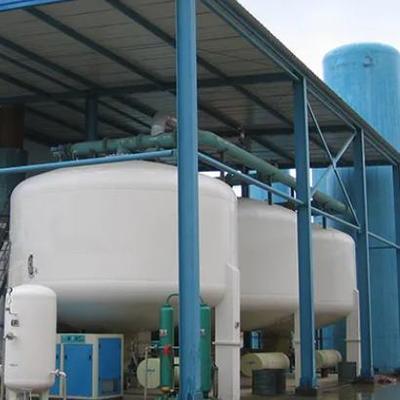

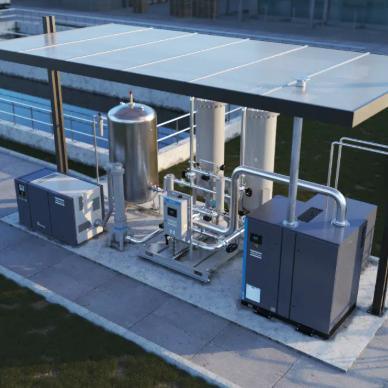

20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use

20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use
20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use 20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use 20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use 20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use

Gambar besar :  20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: ≥1set
Harga: According to the product
Kemasan rincian: Kemasan Kotak Kayu
Waktu pengiriman: Waktu transit: Est. 17-24 hari
Syarat-syarat pembayaran: MoneyGram, Western Union, T/T, D/P, D/A, L/C.
Kontak

20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use

Deskripsi
Condotion: Baru Tingkat kebisingan: ≤75 dB (a)
Sistem Pengendalian: PLC Diameter kapal luar: 2000 mm
Voltase: tegangan lokal Titik embun: -40 ℃
Aplikasi: Produksi oksigen Isolasi: bubuk vakum
Laju aliran: 100-10000nm3/jam Materi dalam: Baja Tahan Karat
Konsumsi: Hemat energi Rentang Hidup: +10 tahun
Siklus pemeliharaan: ≥8000 jam Catu daya: 380V/50Hz
Menyoroti:

20-50Nm3/h VPSA Oxygen Generator

,

100-10000Nm3/h Oxygen Gas Plant

,

0.5bar-100bar Medical Oxygen Generator

20nm³-50nm³ Industrial Medical VPSA Oxygen Gas Plant Generator
The Vacuum Pressure Swing Adsorption (VPSA) generator uses air as raw material and molecular sieve pressure swing adsorption to produce oxygen, providing a simple, practical, reliable, and economical method for on-site oxygen preparation in medical institutions. The vacuum suction system significantly reduces pressure requirements, ensuring a safer working environment while reducing energy consumption. The system operates smoothly with reliable performance, is easy to operate, consumes less energy, and serves as ideal equipment for hospital central oxygen supply.
Competitive Advantages:
  • No need for plant and equipment - simple foundation requirements
  • All power equipment are imported/export models with excellent performance
  • Low noise operation - no separate noise reduction measures required
  • No circulating water or demineralized water system needed
  • Fully unattended operation
  • Low operational costs
  • Long molecular sieve service life (over 10 years)
  • Advanced technical level with modular, miniaturized design for easy transportation
  • Exceptionally low equipment failure rate
Product Specifications
No O₂ Capacity (Nm³/h) Type O₂ Purity O₂ Pressure Remark
150VPSA-5080-93%0.5bar-100barskid-mounted
2100VPSA-10080-93%0.5bar-100barskid-mounted
3150VPSA-15080-93%0.5bar-100barskid-mounted
4200VPSA-20080-93%0.5bar-100barskid-mounted
5250VPSA-25080-93%0.5bar-100barskid-mounted
6300VPSA-30080-93%0.5bar-100barskid-mounted
7400VPSA-40080-93%0.5bar-100barskid-mounted
8500VPSA-50080-93%0.5bar-100barskid-mounted
9600VPSA-60080-93%0.5bar-100bar
10800VPSA-80080-93%0.5bar-100bar
111000VPSA-100080-93%0.5bar-100bar
121500VPSA-150080-93%0.5bar-100bar
132000VPSA-200080-93%0.5bar-100bar
142500VPSA-250080-93%0.5bar-100bar
153000VPSA-300080-93%0.5bar-100bar
164000VPSA-400080-93%0.5bar-100bar
175000VPSA-500080-93%0.5bar-100bar
Custom configurations available upon request.
20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use 0 20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use 1 20-50Nm3/h VPSA Oxygen Generator with 100-10000Nm3/h Flow Rate and 0.5bar-100bar Pressure for Industrial Medical Use 2
Global Applications
Our VPSA Oxygen Generators have been successfully supplied to customers in Philippines, Russia, Myanmar, Indonesia, Ghana and other countries.
Quality Assurance & Service Commitment
  • 12-month quality warranty after acceptance
  • Comprehensive training in operation, maintenance, and troubleshooting
  • 24/7/365 technical support
  • Scheduled maintenance reminders and regular surveys
  • Lifetime availability of accessories and wear parts
  • Free remote instruction and training
  • Affordable spare parts and on-site service post-warranty
  • Detailed trace files for all products with quarterly surveys
In addition to VPSA Oxygen Generators, we also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
