VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use
VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

Gambar besar :  VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: ≥1set
Kemasan rincian: Kemasan Kotak Kayu
Waktu pengiriman: Waktu transit: Est. 17-24 hari
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan: 25 setiap bulan
Kontak

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

Deskripsi
Output oksigen: ≤500Nm3 / jam Area tertutup: ~600m2
Laju aliran: 100-10000nm3/jam Peringkat tekanan: Tekanan tinggi
Titik embun atmosfer: ≤－60 ℃ Kondisi: Baru
Waktu Mulai: 15-30 menit Bahan: baja tahan karat
Aplikasi: Produksi oksigen Tingkat produksi: 50 ~ 5000NM3/H.
Kemurnian: 93-95% Tekanan output: 10-15kap atau sebagai persyaratan pengguna
Menyoroti:

Low Power Consumption VPSA Oxygen Generator

,

Low Noise VPSA Oxygen Plant

,

Long Service Life Cryogenic Oxygen Generator

VPSA Cryogenic Nitrogen Oxygen Plant - Medical & Industrial Use (Over 95% Purity)
Salient Features
  • Low Power Consumption: Precise equipment parameters with no overload or performance waste. Features high-energy oxygen-producing molecular sieves with low adsorption resistance and optimized adsorption tower design.
  • Low Noise: Large pipe and valve diameters with low gas flow rate. Incorporates combined sound insulation and absorption design.
  • Long Service Life: Components selected from first-line domestic and international brands. Features reliable top tower seal and includes regular maintenance follow-ups.
  • Intelligent Operation: One-click start/stop with unattended operation capability. Includes prompt alarm/emergency stop response and strict self-control logic design.
Product Parameters
Gas Production (Nm³/h) Air Consumption (Nm³/min) Imported Nominal Diameter DN (mm) Host Dimensions L*W*H (mm)
10.2DN15800 * 650 * 1720
20.4DN15950 * 950 * 1500
30.6DN151050 * 900 * 1865
51DN201450 * 900 * 1825
102DN321450 * 900 * 1825
153DN401800 * 950 * 1940
204DN401850 * 1025 * 2100
255DN502000 * 1050 * 2210
306DN502000 * 1050 * 2530
5010DN652200 * 1250 * 2720
6012DN652250 * 1300 * 2850
8016DN802350 * 1550 * 3060
10020DN1002500 * 1600 * 3330
12024DN1002600 * 1700 * 3670
15030DN1504700 * 1500 * 2980
18036DN2004700 * 1600 * 3370
20040DN2005000 * 1600 * 3330
24048DN2005200 * 1700 * 3670
VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 0 VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 1 VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 2
Installation Solution

The oxygen plant system includes:

  • Screw type air compressor
  • Oxygen booster
  • Air buffer tank
  • Refrigerated dryer
  • Filtration equipment
  • Oxygen buffer tank
  • Oxygen generator
  • Oxygen regulator
  • Filling manifold
Installation Steps

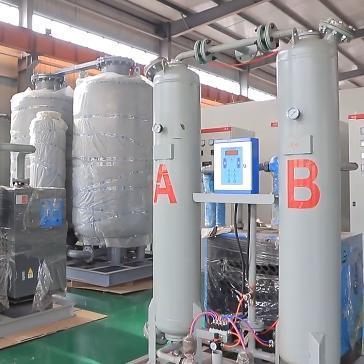

  1. Connect A&B from the air compressor flange to the refrigerated dryer flange using black DN50 high pressure tube
  2. Connect C&D from the oxygen generator to the oxygen booster using black DN50 high pressure tube
  3. Connect F from the oxygen booster to the filling manifold using black DN50 high pressure tube
  4. Connect the filling manifold to oxygen cylinders
Installation Notes
  • Ensure sealed connections between all equipment
  • Tighten all gaskets and screws properly
  • Prevent any air leakage
Packaging Details
Size123 (L) * 456 (W) * 789 (D)
Weight1.2 T
PackagingStandard wooden box packaging. For European exports, fumigated wooden boxes are used. Alternative packaging (PE film) available for tight container spaces or special customer requests.
We also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please email info@gneeheatex.com. Our team will be pleased to assist you.

Label:

Pabrik oksigen VPSA 300 Nm3/jam,

Generator oksigen VPSA industri,

Pabrik oksigen kontrol PLC
