5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi

5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi
5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi 5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi 5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi 5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi

Gambar besar :  5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi

Detail produk:
Place of Origin: China
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: ≥1sets
Packaging Details: Single item
Delivery Time: Transit time: Est. 17-24 days
Payment Terms: L/C, T/T
Supply Ability: Annual Production 30,000
Kontak

5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi

Deskripsi
Tekanan desain: 22.7bar Bahan Luar: Q345R
Laporan pengujian mesin: Disediakan Isi: LO2,LN2,Lar,LCO2,LNG.
Volume efektif: 5-200m3 Metode penempatan: horisontal
Kata kunci: Tangki penyimpanan cryogenik horizontal Rasio pengisian: 95%
Jaminan: Satu Tahun Suhu Kerja: -196 - 0 ℃
Jenis isolasi: Diisolasi dengan vakum Fitur: Efisiensi tinggi
Menyoroti:

Tangki penyimpanan kriogenik LNG horizontal

,

Tangki penyimpanan kriogenik LNG 200m3

,

Tangki penyimpanan kriogenik 5m3

LNG Horizontal Cryogenic Storage Tanks



Description

The LNG Horizontal storage tank is meticulously constructed with an inner container and an outer shell, both designed to ensure maximum durability and safety.

The tank also includes robust support structures, a sophisticated process piping system, and high-quality thermal insulation material

In horizontal tanks, the pipelines are integrated on one side of the head.

This design facilitates easy access for unloading and maintenance, making it convenient for operations requiring frequent monitoring and adjustments.

LNG Horizontal Cryogenic Storage Tank Specifications



Gross Capacity
(Water)		 MAWP NRE % (Daily) Insulation Outside Diameter Overall Length Weight
(Empty)
Gallons m3 PSIG barg NRE % (Daily)   in mm in mm Kg Lb
30,000 113.5 175 12.07 0.15-0.3 Perlite/Vacuum 150 3,800 600 15,225 20,547 45,300
60,000 227.12 175 12.07 0.15-0.3 Perlite/Vacuum 150 3,800 1,227 31,181 54,431 120,000
90,000 340.69 175 12.07 0.15-0.3 Perlite/Vacuum 150 3,800 1,790 45,501 134,200 295,860
120,000 454.25 175 12.07 0.15-0.3 Perlite/Vacuum 205 5220 1,247 31,699 128,300 282,853
200,000 757 175 12.07 0.15-0.3 Perlite/Vacuum 257 6524 1,238 31,469 193,250 426,043

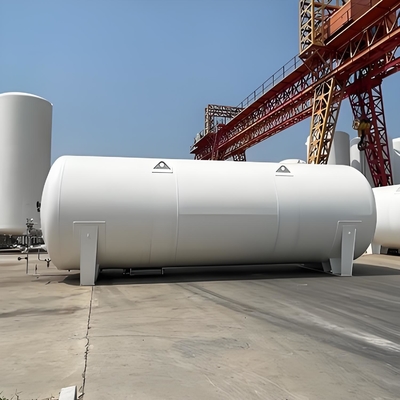

5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi 05-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi 1



Features

  • good durability and security.
  • compact structure, small footprint, centralized control.
  • excellent heat preservation, small evaporation loss.

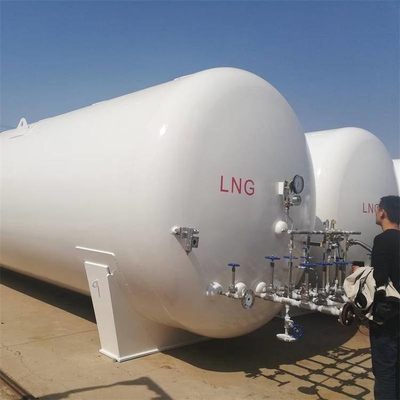

5-200m3 Tangki Penyimpanan Cryogenic Horizontal LNG Performa Optimal Terisolasi 2

Applications of LNG Storage Tanks in Key Industries

  • Power Generation: Ensuring a stable LNG supply for power plants
  • Industrial Manufacturing: Supporting steel, chemical, and glass production
  • Transportation: Fueling LNG-powered ships, trucks, and buses
  • City Gas Supply: Providing LNG storage for urban energy distribution


Label:

Tangki Penyimpanan Kriogenik 25m3,

fasilitas penyimpanan LNG Vakum,

wadah penyimpanan nitrogen cair 2.16mpa
